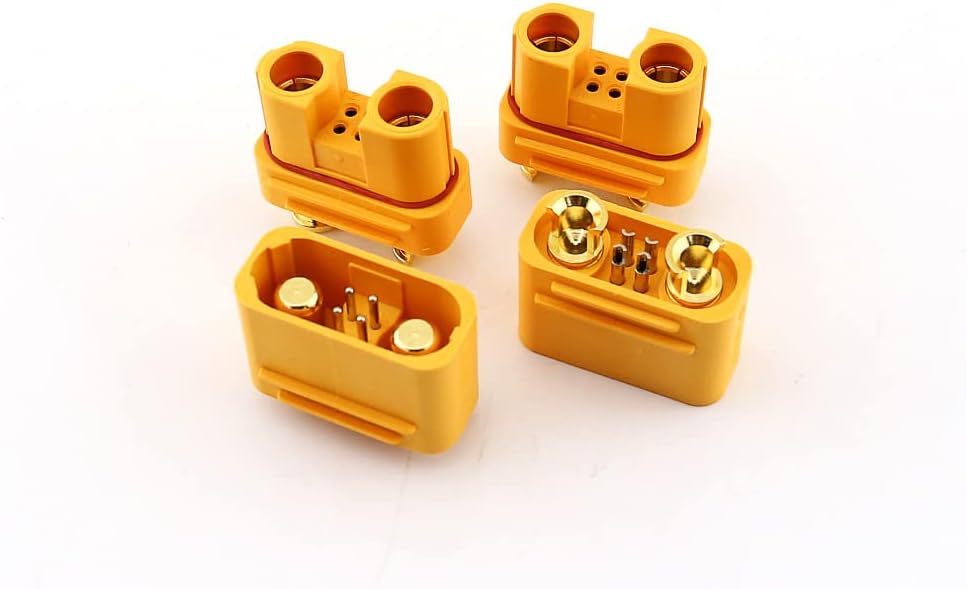

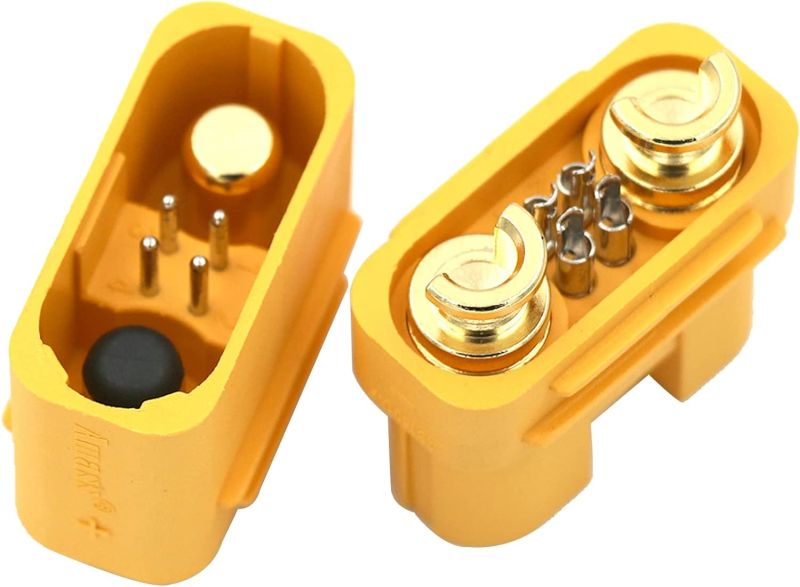

Amass AS150U Gold Plated 7mm Anti Spark Connector with Signal Pin ,Male and Female

The AS150U Anti-Spark waterproof connector is perfect for high-current applications as it utilizes gold plated brass 7mm bullets rated up to 140A and can accommodate up to 8 AWG wires.
This anti-spark system will prolong the life of your connectors and electronics on high-voltage setups.
The connector also has 4 signal pins that can be used, as applicable.

All plugs with signal pin versions can be connected to smart batteries or chargers via signal pins to read battery/charger information

Specifications:
Item No. : AS150U
Metal material: Brass gold plated
Plastic material: PA66
FR Level: UL94 V0
Recommend USE: Battery
Temperature rise: 70A ＜70℃ (1Hour)
Weld mental: Main copper3.3; Signal pin 2.5
CR: 0.40mΩ
Rated voltage: ＜DC 500V
Rated Current (RC): 70A
Instantaneous current: 140A
Use times: 1000 times
Temperature rise: 140A ＜80℃(1min)
Insertion Force: 3-5kg
Temperature: 20℃ to 120℃

• Included:

Male x1 + Female x1
