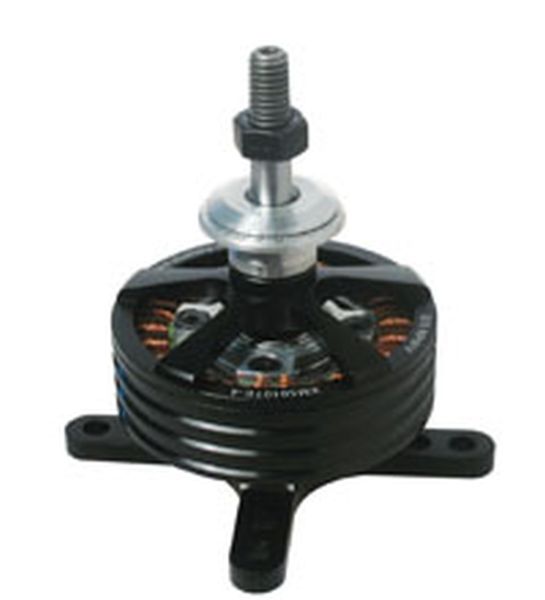

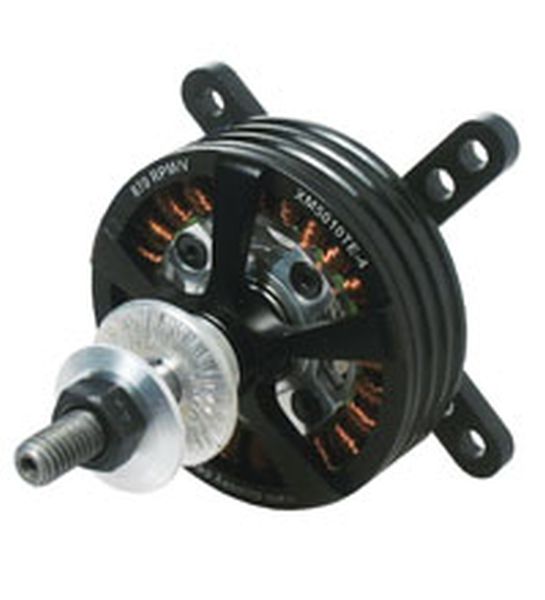

DUALSKY XM5010TE-4 870KV Outrunner Brushless Disk Type Motor for Multi-rotor and Airplane
Specification：
- KV: 870RPM/V
- Weight: 126g
- Diameter: 50mm
- Length: 32mm
- Diameter of Shaft: 6.0mm
- Mounting holes pitch: 19/25mm
- Slots,Poles: 24,28
- Idle Current(Io) @10V: 2.4A
- Resistance(Ri): 22mOhm
- Cruising power[8 mins]: 330W
- Bursts current[15s]: 54A
- Peak power[15s]: 600W
- Recommended ESC: XC6018BA
- Setup 1 (No. of Cell, Prop.): 3S, 14x6
- Setup 2 (No. of Cell, Prop.): 4S, 12x6
- Max. weight of 4-rotor copter: 3.3kg
- Max. weight of 3D models: 1.1kg
- Memo: 3KG 4-rotor copters, 15-25E airplanes
