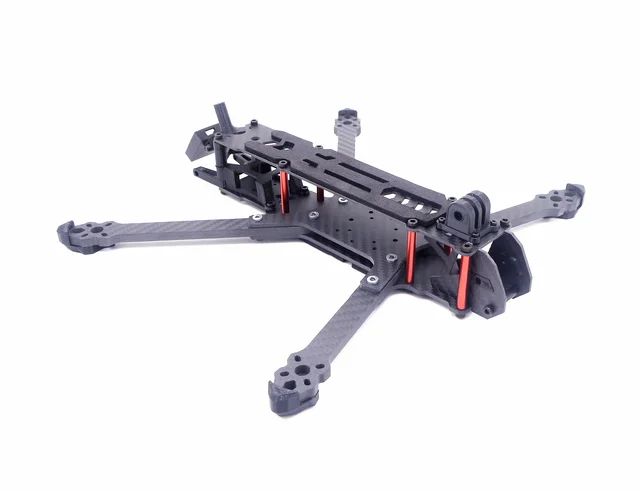

Erdog 8inch O3 Frame Kit FPV Freestyle RC Racing Drone Kit 340mm

High-Quality Drone Frames: Our Erdog drone frames offer a perfect balance between weight, strength and performance. Designed with great care, they provide stability and maneuverability in different flying conditions.

Durable and Lightweight: The frame comes with a robust structure consisting of a 3.0mm bottom plate, a 2.0mm top plate, a 2.0mm middle plate and a 6.0mm arm, which ensures durability and protection. Despite its robustness, it maintains a lightweight design, making your drone agile and fast.

Compatibility: Our drone frames are compatible with the BN-220 GPS and DJI O3 Air Unit, DJI Air Unit and VISTA Air Unit, providing flexibility and customization for your drone assembly and upgrades.

Easy Installation: With well-structured motor installation and flight controller settings, our frames facilitate a simple and straightforward assembly process, helping you get your drone in the air faster.

Erdog 8 frame:

Product parameters:

1. Wheelbase: 340mm

2. Weight: 240G(including print)

3. Thickness: bottom plate 3.0mm, upper plate 2.0mm, splint 2.0mm, camera side plate 2.0mm, arm 6.0mm

4. Blade: 8-inch blade

5. Flight control hole distance: 20*20mm (M2),25.5*25.5mm (M2), 30.5*30.5mm (M3)

6. Tail drawing hole distance: 20*20mm (M2),25.5*25.5mm (M2), 30.5*30.5mm (M3)

7. Camera installation width: 20mm

8. Motor mounting holes: 16*16mm(M3) and 19*19mm(M3)

9. Print material: 3D printing tpu material

10. Print color: Black TPU

11. Adaptive GPS base: BN-220 GPS

12. Suitable for DJI O3 Air Unit/ DJI Sky terminal /VISTA sky terminal

13. List of printed parts: 1 general action camera base, 1 pair of side panel lens mounting base, 1 O3 sky end surrounding base, 1 general antenna base, 1 DJI sky end surrounding base, 1 DJI sky end antenna base, 1 GPS print, 1 915 antenna base, 4 motor protection base
