Extron Plug 10-Shape Mould plug set for Lipo Plugs #X3299

The Extron 10-port connector shape allows you to mold "handles" to the ten most popular model building connectors.

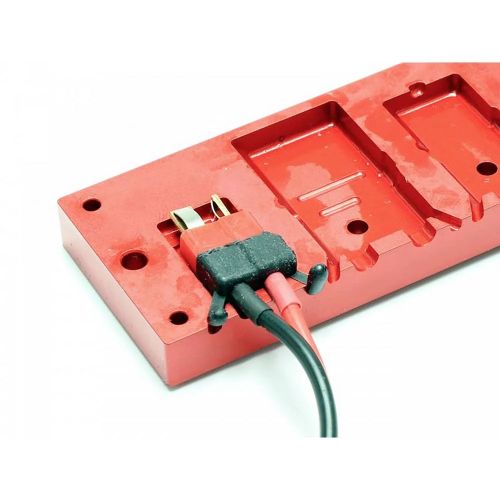

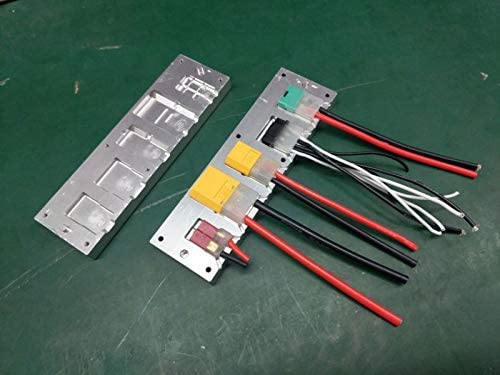

The Extron connector mold is made of CNC machined aluminum for durability. The application is very easy (see pictures). All you need is a standard hot glue gun.

1. moisten the inside of the plug form with a commercially available release agent, e.g. wax spray
2. insert plug or socket with cable already soldered into the mould and close with the upper part of the mould
3. press hot glue into the central hole until it swells out at the side outlet holes
4. after a short cooling down, remove the plug from the mould and remove the sprue with a sharp knife - that's it!

The Extron connector shape is suitable for:

• T connector (Deans)
• T socket (Deans)
• MPX 6-pin plug
• MPX 6-pin socket
• MPX 8-pin plug
• MPX 8-pin socket
• XT-60 connector
• XT-60 socket
• XT-90 connector
• XT-90 socket
