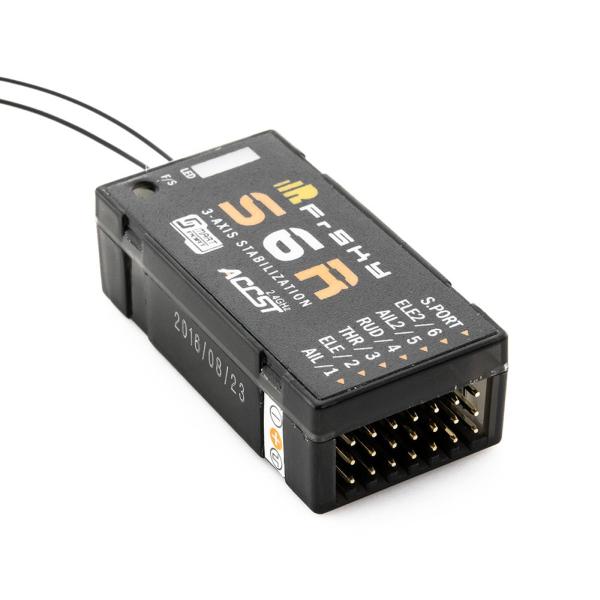

FrSky S6R 6ch Receiver w/ 3-Axis Stabilization + Smart Port Telemetry

FrSky S6R 6ch Receiver w/ 3-Axis Stabilization + Smart Port Telemetry

FrSky has combined the popular FrSky receiver technology with a super stable 3-axis system for fixed wing aircraft.
The S6R is based on the STM32 platform, with both receiver and flight control functions.
The S6R includes a three-axis gyroscope and three-axis accelerometer sensor module, with settings that are programmable via FrSky radios or the PC configuration tool (with FrSky STK).
Besides six-channel receiver function, the S6R also has stability augmentation, automatic level, crane, sideward flight, and shutdown functions of conventional airfoils.
Delta wing (flying wing) and V-tail models only support stability augmentation, automatic level and shutdown functions.

Features:

• Built-in 3-axis gyro and 3-axis accelerometer sensor module
• Has RSSI PWM output (0~3.3V) onboard
• Built-in battery voltage sensor
• Smart Port enabled

Compatibility:

• FrSky Taranis X9D/ X9D Plus/X9E/Horus X12S/XJT in D16 mode
• S6R-EU only work with FrSky Tatanis X9D-EU/ X9D Plus-EU / X9E-EU / Horus X12S-EU / XJT-EU in D16 mode

Model:

• 6CH receiver with buil-in 3-axis gyro and 3-axis acceleration

Specifications:

• Dimension: 47.42*23.84*14.7mm(L*W*H)
• Weight: 12.1g
• Operating Range: full range
• Operating Voltage Range: 4.0~10V
• Operating Current: 100mA@5V
• Number of Channels: 6CH （1~6CH from conventional channel outputs）
• Measurement Range: ±4g
