Fully Equipped 10 - channel handheld transmitter with integrated telemetry function in 2.4GHz FHSS - T frequency - hopping technology .
The ideal plant for advanced control of the airplane , helicopter and Multicopter - models , place value on a precise feeling of control .
The T10J allows with your extremely rich features also demanding applications and leaves nothing in terms program-ability almost nothing to be desired. The ergonomically designed transmitter case with known Futaba build quality feels good in the hand and is characterized by conveniently arranged controls .
A 128 x 64 pixels large, back-lit LCD display , with large pixels for better legibility in all light conditions .
The graphically -driven user interface , with the known simple Futaba menu structure makes for easy operation - the menu system can be chosen in 7 languages. The intuitive 3D hot-key allows quick and easy navigation through the menu structure and easy adjustment of all parameters.
Highlights
- T- FHSS 2.4GHz technology
- High interference by rapid frequency hopping modulation (100 times per second . )
- Future-proof (equivalent already the new EU standard of 2015)
- Integrated 32- channel telemetry system with high range
- Telemetry real-time display on a large screen
- Voice output through optional headphones with 3.5 mm jack
- Melody and sound output ( either via internal beeper or optional headphones)
- Vibration Alarm system
- 65 x 34 mm large, back-lit display (128 x 64 dot)
- S- BUS technology for full digital integration of S.BUS servos , S.BUS controllers and sensors S.BUS
- By S.BUS support ideal for helicopter with flybarless systems S.BUS
- Integrated patch antenna for always optimal antenna radiation
- Fully equipped 10 - channel transmitter with 19 controls

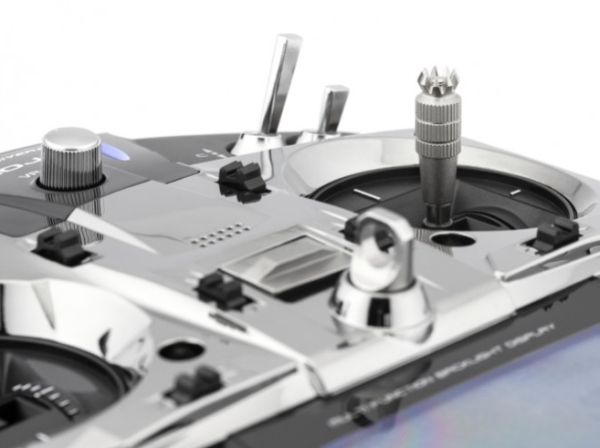

- Precision , backlash-free stick with open- stick mechanism
- The stick units for universal mode (Mode 1 and 2) can be user- Changed .
- Supplied with heavy NiMH battery for 10 hours of operation , and charger.
Included:

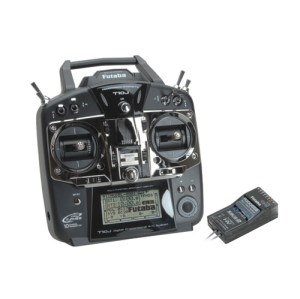

1 transmitter T10J 2.4 GHz T / S-FHSS
1 receiver R3008SB 2.4GHz FHSS-T
1 Transmitter battery 2800 lixx
1 Charger for the TX battery
1 Switch harness with charge socket
1 User Manual
Other Features:
- 10 (8 +2) channels
- Switching from T- FHSS (10 channels ) to S- FHSS (8 Kan) - modulation.
- T- FHSS Frequency Hopping technology with integrated telemetry
- A broad channel spread results in high noise immunity and ultra-fast response times for precise , direct control feel .
- FEC technique that T- FHSS receiver scan the input signal continuously and apply an intelligent error correction method to
- 100mW transmit power
- No reaction speed loss even with heavily occupied frequency band
- Real - time response - real-time control
- Excellent range
- Ultra-fast , direct, continuous digital modulation for the shortest response times
- EasyLink - extremely simple , fast binding process between sender and receiver
- Fast and reliable automatic re- binding , even under difficult conditions
- Intelligent Servo Timing for uniform servo control and prevention of servo delay differences
- Dual Antenna Diversity - extremely fast switching between two receiving antennas for optimal reception signal quality (depending on receiver)
- Integrated range check function to check the reach before the start
