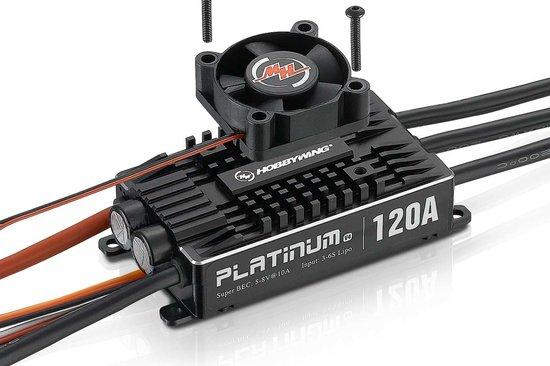

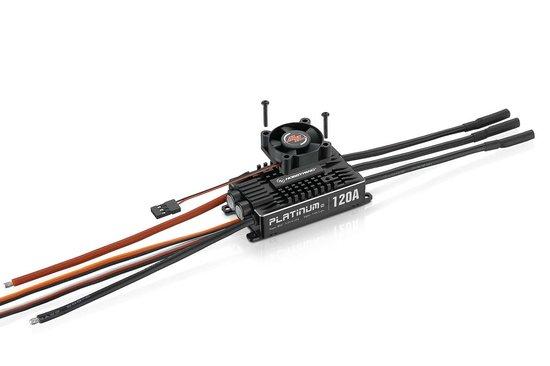

Hobbywing HW30203401 Platinum Pro 120A ESC V4 3-6s, 10A BEC #HW30203401

Hobbywing Platinum PRO V4 120A ESC SPEED controller for RC models (3S-6S) BEC 10a

Super Soft Start-up

• Platinum V4 serial products allows the motor to start extremely smooth and avoids tail-drift issues that helicopters experience.
• The start-up time is adjustable from 8 to 25 seconds, this will definitely create a perfect starting point for every flight.

Excellent Motor Speed Governing

• High-performance 32-bit processor with a provessing frequency of 72MHz combined with advanced algorithm optimizes the speed governing.
• Together with the adjustable governor parameters it will guarantee every pilot a precise and efficient control experience.

High Voltage Built-in BEC

• The built-in switch mode BEC with an adjustable voltage range from 5V to 8V, a continuous current of over 10A and peak current of 25A can supply enough power for your HV servos to operate at their peak.

DEO Technology

• The DEO (Driving Efficiency Optimization or so-called “Active Freewheeling”)
• technology implemented in the ESC has multiple advantages.
• A very Rapid response to throttle change.
• Higher driving efficiency, longer flight time.
• Lower ESC temperature and a much more reliable operation during flight.

Other Features

• A separate program port for connecting programmer on this ESC allows user to
• Program ESC,
• Check flight data include minimum voltage, maximum temperature, standardized RPM and
• speed curve (in Heli Governing Store mode) of the flight parameters recorded by the ESC,
• Upgrade ESC firmware with a mutifunction LCD program box or a WiFi Module & our
• Apple/Android phone App.

Four Brake Modes

• This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional
• Brake and Reverse Brake” four brake modes. The brake amount is adjustable in normal brake mode; in proportional brake mode, the brake force will be automatically selected based on the position of radio throttle stick; in reverse brake mode, the motor rotation can be changed via a spare transmitter channel.

Multiple Protections

• Multiple protection features include ESC thermal, capacitor thermal (HOBBYWING-patented technology), ESC overload, throttle signal loss(or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.

Specifications:

• Product Name: Platinum 120A V4
• Type: Brushless, Regular
• Specifications
• Cont./Peak Current: 120A/150A
• Input: 3-6S LiPo
• BEC Output: Switch Mode:5-8V,10A
• Input Wires: Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output Wires: Black-12AWG-100mm*3
• Input Connectors: No
• Output Connecotors: 4.0mm Gold Connectors (Female)
• (Note: All the wire length above is the original length not the length you see from the outside.)
• ESC Programing via:
• Transmitter: Not Supported
• LED Program Card: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• Program Port: Separate Program Port
• Firmware Upgrade: Supported
• Size: 84.3x38.2x20.4mm
• Weight: 107g
• Applications:
  • 500-550 Class Heli (Main Blade: 470-575mm)
  • .70-.90 Class Fixed-wing Airplane 3D, Light Weight FAIF3A
  • EDF (with Diameter≦90mm)
