Hobbywing Integrated XRotor 6215 180KV motor / 80A ESC / 2388 propeller for professional UAV

Hobbywing Integrated XRotor 6215 180KV motor / 80A ESC / 2388 propeller for professional UAV, FOC Power !

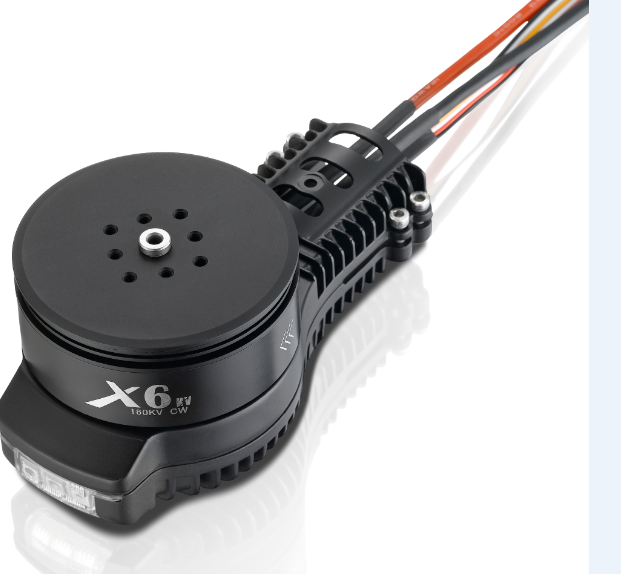

Integrated & Ready-to-use Propulsion System

The X6 propulsion system, which integrates motor, ESC, propeller and motor mount (with 30-to-28 tube adapter) compatible to 28mm&30mm diameter carbon fiber arm tubes
Easy to mount and use.

Note: with the foldable 2388 propeller, the propulsion system is capable of carrying the load of 5KG  per motor: 20K for Quad and30KG for a hexacopter ).

XRotor 6 Series Power Combo for Agriculutral Drones

• Max. Thrust: 12kg per 1Arm (48V, Sea Level )
• Recommended Takeoff Weight: 3kg-5kg/Axis (48V, Sea Level )
• Recommended  LiPo Battery:12S
• Operating Temperature:-20~65℃
• Combo Weight (approx.):720g
• Motor O.D of Carbon Fiber Tube:30mm/28mm (Tube Adapter INCLUDED)
• KV Rating:180
• Outer motor Diameter: 70mm

ESC Model( integrated)

• XRotor PRO HV 80A FOC V3
• Recommended Input Voltage:6-12S LiPo
• Max. Input Voltage:52.2V
• BEC:NO
• Max. Input Current: 80A(With Heat Dissipation)
• Max. Peak Current (10s):100 A (w/ Good Heat Dissipation )
• Input Wires:12AWG
• Output Wires:14AWG
• Weight:85g(w/o Wires)
• PWM Input Signal Level:3.3V/5V (Compatible )
• Throttle Signal Frequency:50-500Hz
• Operating Pulse Width:1100-1940 μs

Propeller

• Diameter× Pitch  2388
• Weight: 91g (w/ Propeller Adpater, Single Blade: 36g)

Set availiable as CW and CCW
