KONTRONIK KONDOR-XL 30-37 Brushless Outrunner

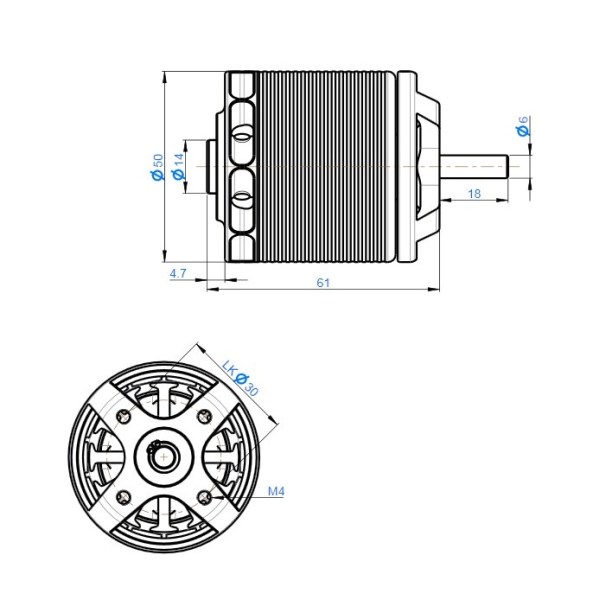

KONDOR: The new engine series from KONTRONIK. The KONDOR is an external rotor motor for surface flight. The KONDOR is currently available in a total of 16 variants. For the KONDOR 15, KONDOR 25, KONDOR-XL 20 and KONDOR-XL 30 there are 4 different kv variants each. Included in delivery and price is already a high quality set consisting of propeller driver with mounting cross. This makes it easy to convert the KONDOR even for the back frame assembly. The KONDOR in short: high temperature resistant neodymium magnets heat resistant up to 150 °C single-wire winding with high-temperature-resistant wire for particularly good ventilation, heat dissipation and more power extremely stable and durable ball bearings case-hardened shaft corrosion-resistant coating of the rotor Technical specifications: compact and robust design (up to 50 mm in diameter, up to 61 mm in length) shaft diameter 5 mm (KONDOR) or 6 mm (KONDOR-XL) with free wavelength 18 mm air screw driver for 8 mm (KONDOR) or 10 mm (KONDOR-XL) bore diameter weight 150-398 g (without accessories) 14 poles 370 RPM/V max 20.000 RPM 1.300 W 18 mm free shaft lenght 6 mm shaft diameter 27 mΩ Ri 14 poles 398 g (additional weight for back mounting 50 g) Included in delivery is a high-quality conversion kit consisting of propeller driver with mounting cross for rear mounting
