KONTRONIK MINIPYRO 400-10

MINIPYRO 400-10

For 450 or 500 sized helicopters the MINIPYRO 400 is the right choice. Same materials as in all PYROs make the MINIPYRO 400 being a real PREMIUM LINE product.
Two different RPMs are available to fit perfectly in applications up to 6S. The gearbox variants are lubricated with DryFluid ex factory.
1 kW continuous power allows 3D acrobatic flight at its finest.

MINIPYRO in short:

• Neodym magnets, heat resistent up to 150 degree C
• Dedicated enameled wire, heat resistent up to 300 degree C
• Optimized metal sheets
• Optimized ventilation
• Radial fan
• Optimized magnet circuit
• 1.000 RPM/V
• max. 24.000 RPM/min
• 1 kW continuous
• 14 poles
• 11 inner resistance

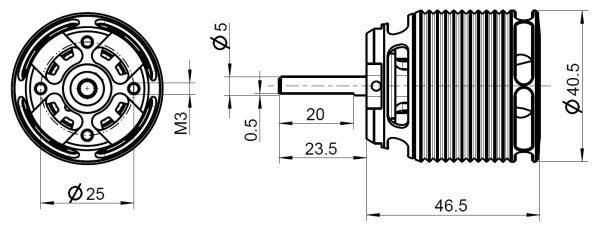

Specifications:

• 5 mm shaft diameter
• 23,5 free shaft length
• 195 g
