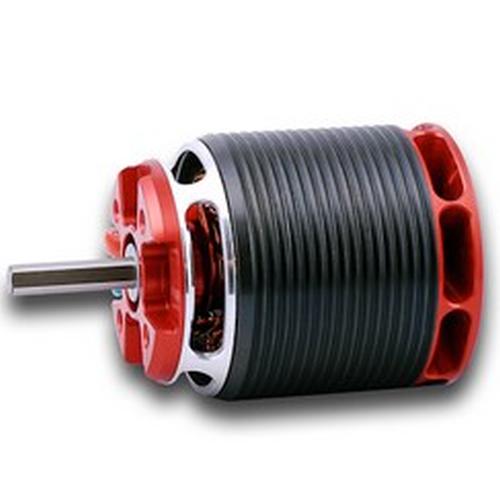

Kontronik PYRO 700-56 L Brushless Motor

Kontronik PYRO 700-56 L Brushless Motor is a real PREMIUM LINE product. The PYRO 700 is the ultimate motor for all helicopter pilots who know how 3D must look like. In such a 3D application the motor is heavily stressed. And it is exactly what a PYRO 700 is well equipped for.

To use the PYROs to full capacity it can be reasonable to mount a counter bearing. So all versions of the PYRO 700 are additionally available with 3 different shaft length. The PYRO 700 is the motor for 600 and 700 sized helicopters. More than 3 kW continuous power make nitro engines pale. The RPM fits perfectly to applications up to 12S.

Features:

• Neodym magnets, heat resistent up to 150 degree C
• Dedicated enameled wire, heat resistent up to 300 degree C
• Optimized metal sheets
• Optimized ventilation
• Radial fan
• Optimized magnet circuit

Specifications:

• RPM/V: 560
• RPM max: 25.000
• Continuous Power: 3.5kW
• Weight: around 375gr
• Shaft diameter 6mm
• Poles: 10
• Inner resist.: 23mΩ
