Mini FPV CCD Camera 600TVL DC 5-17V Wide Voltage input, 2.8mm Lense

Mini FPV CCD Camera 600TVL DC 5-17V Wide Voltage input,  2.8mm Lense

• Color 600TVL Black & white 650TVL High Picture Quality, 1/3'' SONY SUPER HAD II CCD

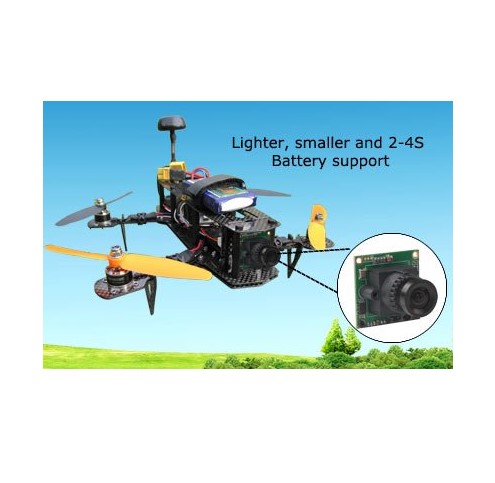

• Support 2 to 4S battery (DC 5 to 17V) Wide voltage Power input
• Digital Noise Reduction(2 DNR), Low Power Consumption,Back light compensation (BLC)
• Anti-exposure function support car license recording(HLC)Features:

Specifications

• Image Sensor :1/3 SONY SUPER HAD II CCD
• Horizontal Resolution :600TVL
• Effective Pixel :PAL753(H)*582(V)
• Auto White Balance
• Manual/Auto/Auto tracking
• S/N Ratio :>60dB(AGC OFF)
• Electronic Shutter Speed:1/50 to 1/100,000sec
• Auto Gain Control
• Back light compensation (BLC)
• Min. Illumination :0.01Lux/1.2F
• Shading Area: 8
• Video Output:1.0Vp-p 75 ohm RCA output
• Power : DC 5 to 17V
• Dimensions : 28mm * 28mm
• Operating Voltage:5.0V-17.0V
• Operation Temp.–10C to +50C
