Multi-Rotor Motor MC3536-380KV 6S

MC3536-380kv , made for 6S setups, and is a high torque motor especially developed for the Multi-rotors platforms .

This motor has been custom designed and tested during 2 years, and found to be the most efficient for most multi-copters from 500cm and up, due its features.

So what is so special in this motor:

1- Dynamic balance, very few motors are really dynamically balanced. the equipment is very unique, and we do insist on the fact and also costs involved that the motor should be balanced, otherwise the fatal vibration will kill the machine sooner or later

2- Heat, 25% lower heat generation thanks to ceramic bearings.

3- Ceramic hybrid bearings, and the motor has 3 of them: Radial forces of motor taken away with the help of those special bearings, which also self lubricated,the smoothness of the motor felt directly with the throttle reaction.

4- 60cm cables, will allow direct connection to most size frames, up to 1.2 meters.

5- Special size of cage and motor shaft will allow perfect setup and perfect performance on any setup, single or coaxial.

Specifications:

•     No-load speed: 380kv
•     Load current: 19Amp
•     Burst Amps : 30 Amps
•     Power: 430 W
•     Short shaft
•     Propeller mount diameter: 6mm
•     Long cables (60cm)
•     3 x Ceramic Hybrid bearings
•     Weight: 104gr

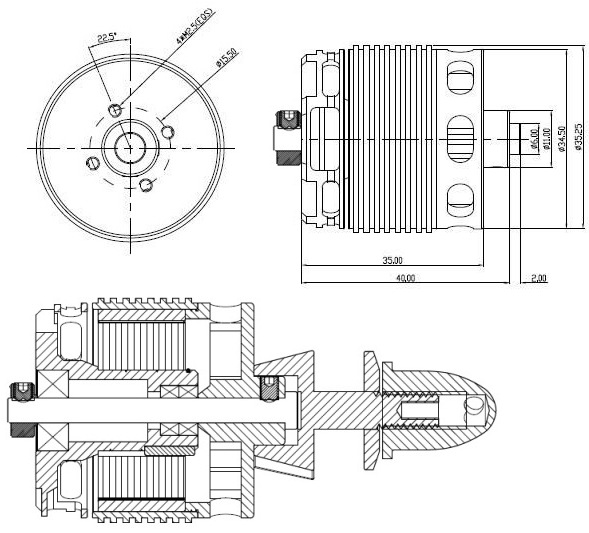

•     Size : 35 x 36 mm
•     Poles: 14
•     Recommended Battery: 6S, 22.2V
•     Resistance 44 mOhm
•     Idle current @ 10v :0.7 Amps
•     Propellers to use: from 12" to 14"

    Included:

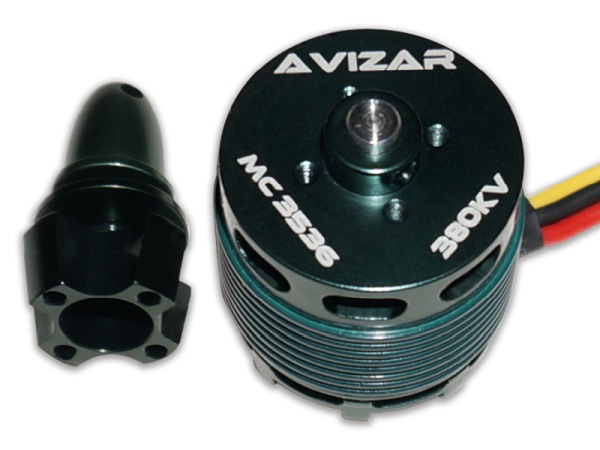

    MC3536-380KV motor
    Propeller mount with screws, Nut and Cup provided for choice.

See the movie showing Sky hero setting a speed record using the MC3536 motor
