QJE 0-30V / 20A Switching mode power supply

This controllable DC power supply unit is ideal for use in laboratories, workshops, car racing tracks or modelling. It is a precisely adjustable power supply in a solid sheet steel housing. The output voltage can be continuously regulated from 0-30 V. The current limit value (current intensity) can be set continuously from 0-20 A, whereby the voltage is reduced when it is reached.

The device is stabilized and short-circuit-proof by limiting the output current.

The heat is dissipated by an internal heat sink, which is supported by the fan at higher temperatures.

Product features

Display for output voltage with 1 decimal place

Display for output current with 1 decimal place

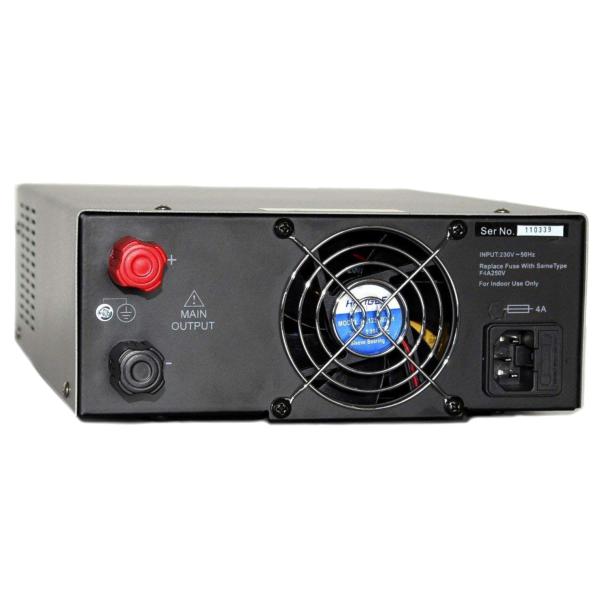

Solid outputs with screw terminals on the back

1 output with safety sockets on the front for currents up to max.5A

Passive and active cooling

High efficiency, low weight and low heat generation thanks to switching power supply technology

Power connection via IEC cable

Technical specifications

Input voltage: 230V ± 10%, 50Hz

Output voltage: 0-30V DC continuously adjustable

Output current: 0-20A continuously adjustable

Output power: 30V x 20A = 600W max.

Residual ripple: CV <100mV (rms), CC <100mA (rms)

Display accuracy: Voltage: ± (0.2% + 0.3V), current: ± (0.2% + 0.3A)

Display: LCD with one decimal place each for current and voltage

Weight: approx. 2.9kg

Dimensions [mm]: WxHxD: 214x92x336

Scope of delivery

DC adjustable laboratory power supply PS-3020 20A

Power cord (IEC cord)

operation manual
