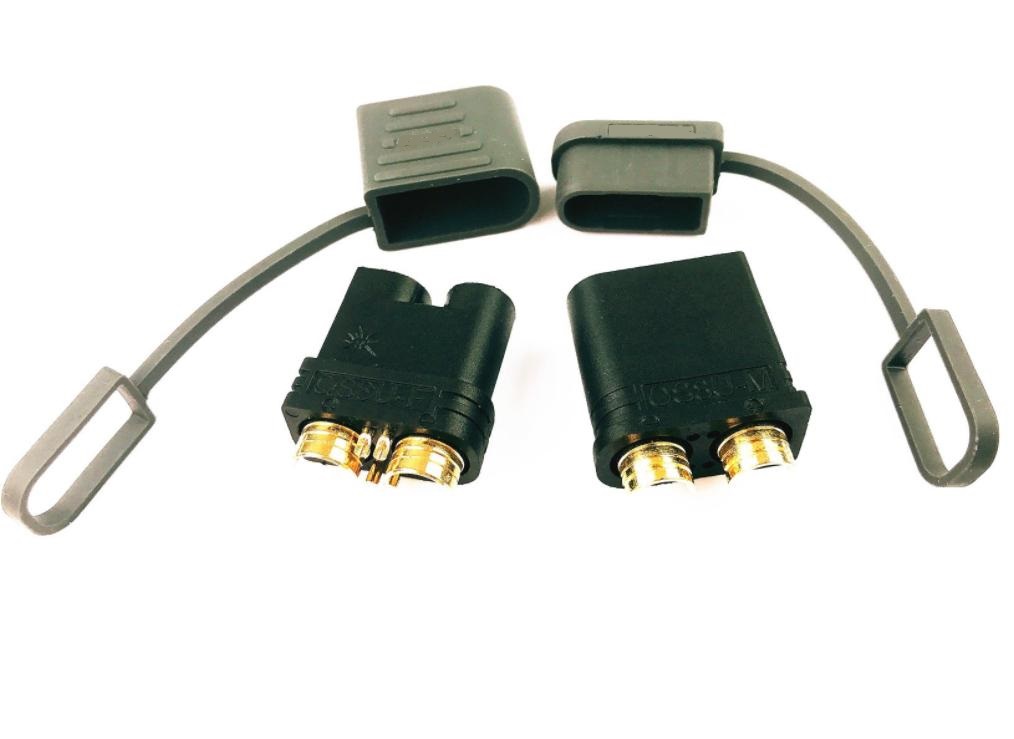

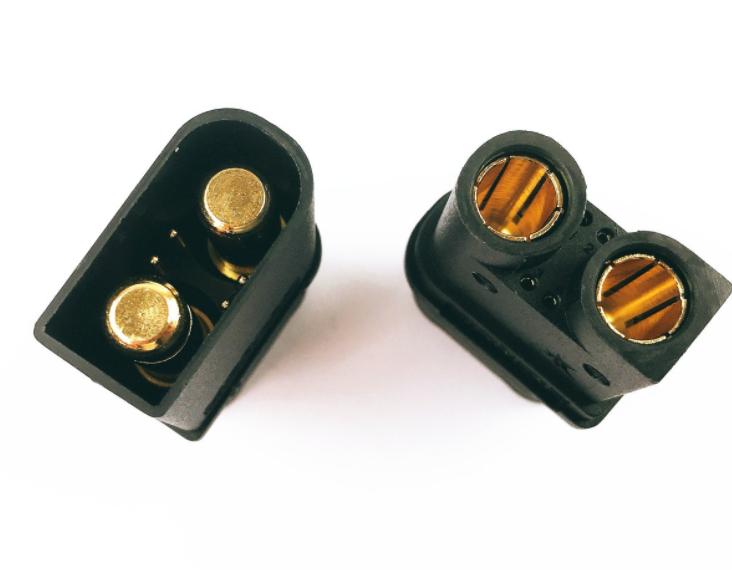

QS8U ANTISPARK Connector SET 8mm for High current applications, with DATA 4 pins, 180A

This is a set of Special High current connectors with Anti spark adding 4 Pins FOR DATA or misc connection, e.g temp sensor, data, and more.

Those are 8mm connector with special Anti-spark device installed so even with huge power applications  you will avoid Sparks.

Connectors are Gold plated to avoid corrosion and allow perfect conduct.

Possible to buy as 1 set or set of 8 (cost saving)

Color is black

1 set including 1 Male, 1 Female

Specification:

• Connector Housing: nylon with fiber.
• 8mm Anti-spark with 5.1 ohm
• Banana material: gold plating brass
• set Weight: 36g
• Under highest temperature: 200 degree
• Biggest wire:8-12 AWG
• Current: 120A~200A

Please note , you need a Heavy duty soldering Iron for those connectors, we recommending 200W stations
