Item #: HK5-4525-535
Stock 3-4 days
€ 330,00

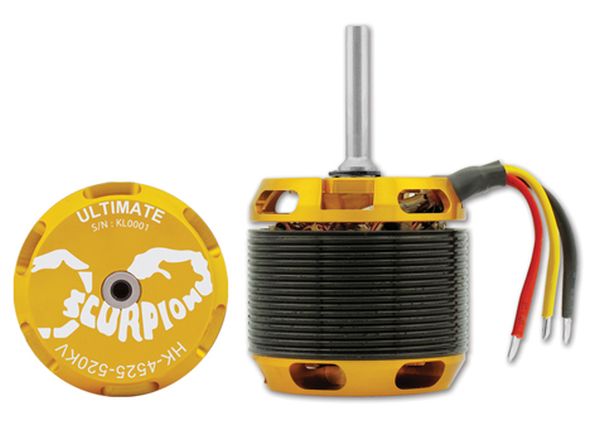

We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"
The
HK5 Series lives up to and exceeds our standards of the most Powerful
and Efficient motors, with market leading Torque per Amp capabilities.
In addition, on the HK5 series we focused specifically on motor cooling
and motor temperature. With an all new Internal Fan design, combined
with our proven external centrifugal fan, we have nearly doubled the
amount of airflow passing through the motor. The result is much improved
cooling, and cooler operating temperatures.
The HK5-4525-535kv is designed for 700 size helicopters on 12s lipo, or other UAV application requiring up to 10,200w of power.
Specifications
| Motor Kv | 535KV RPM/Volt |
| Weight | 532 Grams ( 18.76oz) |
| Motor Body Dimensions | 57.5 mm x 61.5mm (2.26" x 2.42") |
| External Shaft Dimensions | 5.98mm x 36mm (0.235" x 1.41") |
| Continuous Current | 115 Amps |
| Continuous Power | 5106 Watts |
| Peak Current | 230A (2 seconds) |
| Peak Power | 10200 Watts (2 seconds) |
| Max Lipo Cell | 12s |
| Stator Diameter | 45 mm (1.57 in) |
| Stator Thickness | 25 mm (1.18 in) |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 5+6T YY |
| Motor Wire | 1.4mm |
