Item #: A_3017_560
Stock 3-4 days
€ 129,99
The Scorpion A - Series line of motors was designed to be the most
optimal and premier choice of motor for your freestyle or UAV airplane.
Unlike most motors on the market, who choose one motor / magnet design,
and then only change the windings to achieve different KV's (which
usually provides one KV range with good results, and average results for
the other KV ranges). On the A - series motors we looked at each kv /
power range individually. We choose the most optimal magnetic design for
each individual kv and implemented it, so that each KV version has the
best possible Performance and Efficiency .
The performance and efficiency results are unlike anything we have seen before!
The
A-3017 series was designed specifically for 48" Acrobatic Airplanes, or
other Sport / UAV airplanes requiring up to 962w of power. Also known
as the 30-32E size. For the A-3017 we offer 3 x kv ranges of 560 / 600 /
920 for various applications and various voltage ranges. The 560kv
being specifically for smoother sport flying applications, or UAV
applications.
| Motor Kv | 560 RPM / Volt |
| Weight (Motor only) | 134g (4.73 oz) |
| Weight (including mount + accessories) | 152g (5.36 oz) |

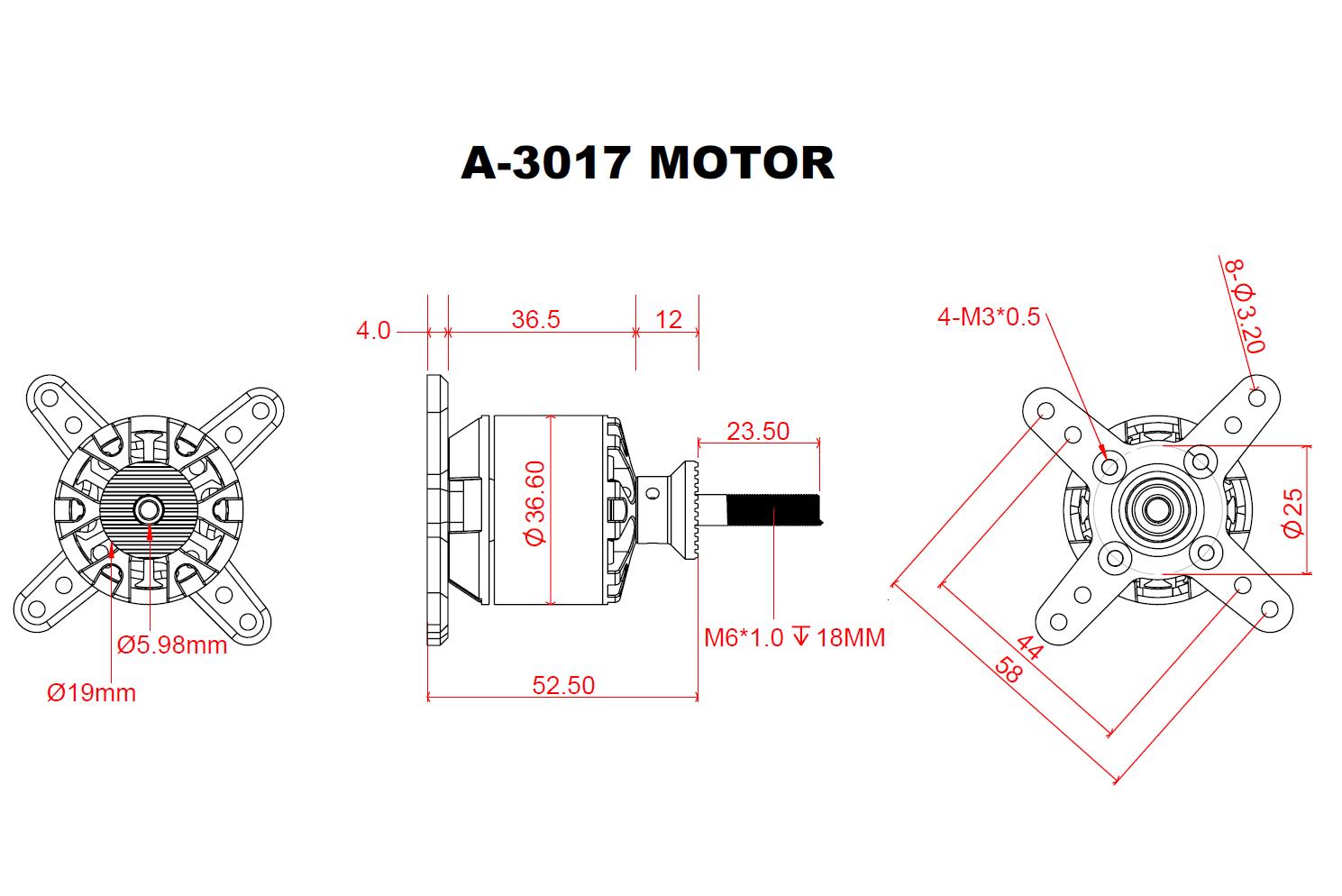

| Motor Body Dimensions | 36.60 mm x 36.5mm (1.44" x 1.44") |
| External Shaft Diameter | 5.98mm |
| Continuous Current | 23A |
| Continuous Power | 510 Watts |
| Peak Current | 32A |
| Peak Power | 710 Watts |
| Max Rated Lipo Cell** | 6s |
| Stator Diameter | 30.0 mm (1.18 in) |
| Stator Thickness | 17 mm (0.67 in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 10T/11T Delta |
| Motor Wire | 7-Strand x 0.25 |
| No-Load Current (IO/15V) | 0.69 Amps |
| Motor Internal Resistance (phase-phase) | 80 mΩ |
| Motor Inductance (phase-phase) @ 1khz | 20.0µH |
