Item #: A_4225_500
Stock 3-4 days
€ 209,99
The Scorpion A - Series line of motors was designed to be the
most optimal and premier choice of motor for your freestyle or UAV
airplane. We have achieved incredible performance through incredible
efficiency. By optimizing the magnets in the rotor, and using the best
quality 0.2mm thickness silicon steel stator sheets, and enamel coated
copper wire windings rated above 200C+, the performance and efficiency
results are unlike anything we have seen before! Combined with a robust
design which has been tested extensively by our world class team pilots
for longevity and reliability, we feel this motor checks and exceeds all
measurable categories!
| Motor Kv | 500 RPM / Volt |
| Weight (Motor only) | 350g ( 12.34oz) |
| Weight (including mount + Prop mount accessories) | 398g (14.039 oz) |

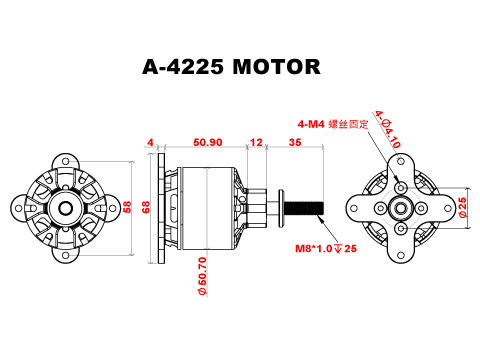

| Motor Body Dimensions | 50.7mm x 50.9mm (+12.0mm prop spacer) (1.99" x 2.00" (+ 0.47") ) |
| External Shaft Diameter | 8 |
| Continuous Current | 100A |
| Continuous Power | 2220 Watts |
| Peak Current* | 140A |
| Peak Power* | 3108 Watts |
| Max Rated Lipo Cell** | 6s |
| Stator Diameter | 42.0 mm (1.65in) |
| Stator Thickness | 25 mm (0.98in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 5T Delta |
| Motor Wire | 23-Strand x 0.29mm |
| No-Load Current (IO/15V) | 1.54 Amps |
| Motor Internal Resistance (phase-phase) | 14 mΩ |
| Motor Inductance (phase-phase) @ 1khz | 10µH |
Select options This product has multiple variants. The options may be chosen on the product page
