Item #: A_5524_205
Stock 3-4 days
€ 399,99
The Scorpion A - Series line of motors was designed to be the
most optimal and premier choice of motor for your freestyle or UAV
airplane. We have achieved incredible performance through incredible
efficiency. By optimizing the magnets in the rotor, and using the best
quality 0.2mm thickness silicon steel stator sheets, and 2 x single
strand enamel coated copper wire windings rated above 200C+, the
performance and efficiency results are unlike anything we have seen
before! Combined with a robust design which has been tested extensively
by our world class team pilots for longevity and reliability, we feel
this motor checks and exceeds all measurable categories!
| Motor Kv | 205 RPM / Volt |
| Weight (Motor only) | 622g (21.94 oz) |
| Weight (including Prop mount accessories) | 655g (23.01 oz) |

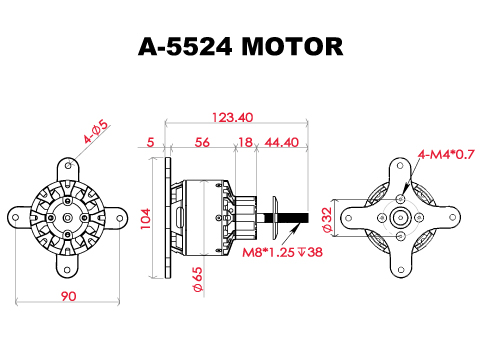

| Motor Body Dimensions | 74.0 mm x 65.8mm (2.93" x 2.60") |
| External Shaft Diameter | 8mm |
| Continuous Current | 80A |
| Continuous Power | 3552 Watts |
| Peak Current* | 105A |
| Peak Power* | 4662 Watts |
| Max Rated Lipo Cell** | 12s |
| Stator Diameter | 55.0 mm (2.16 in) |
| Stator Thickness | 24 mm (.95 in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 9T/10T Delta |
| Motor Wire | 2-Strand x 0.96mm |
| No-Load Current (IO/20V) | 1.51 Amps |
| Motor Internal Resistance (phase-phase) | 35 mΩ |
| Motor Inductance (phase-phase) @ 1khz | 40µH |
