Item #: MII_3011_1100
Stock 3-4 days
€ 99,99
The new Scorpion MII-3011 Cinematography Edition is a purpose
built motor, designed specifically for 8"-9" prop cinelifters. This
motor checks every box you would need it to for your cinematic build.
High Power / High Torque / Unmatched Efficiency / Ultra Smooth / Low Noise
Designed
specifically for props such as HQ 8x4x3 and similar on 6s power, this
motor has a power density like we have never seen before, and unmatched
thrust measuring up to 3200g of thrust till the end of the battery.
While most cinelifter builds fly as a X8 coaxial configuration, with
MTOW of 4kg, our test results show amazing performance with even an X4
configuration flying at 3.5kg. Accounting for coaxial loss, as a X8
configuration, this motor could fly up to 4.5-5kg MTOW with ease.
| Motor Kv | 1100 RPM / Volt |
| Weight (incl. 25cm wire) | 90g (4.80 oz) |

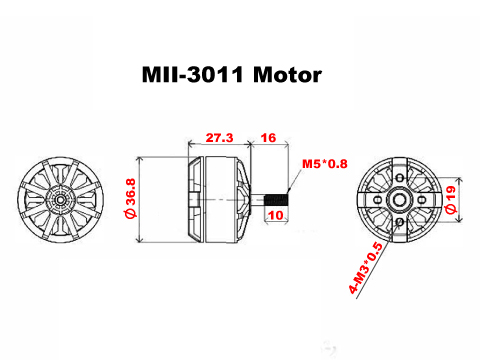

| Motor Body Dimensions | 27.3 mm x 36.8mm (1.07" x 1.45") |
| External Shaft Diameter | 4.98mm x 16mm |
| Continuous Current | 38A |
| Continuous Power | 844 Watts |
| Peak Current | 60A |
| Peak Power | 1332 Watts |
| Max Rated Lipo Cell | 4-6s |
| Stator Diameter | 30.0 mm (1.18 in) |
| Stator Thickness | 11 mm (0.67 in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 8T Delta |
| Motor Wire | 10-Strand x 0.25 |
| No-Load Current (IO/15V) | 1.6 Amps |
| Frequency | 48khz |
| Timing | 24deg |
| Motor Internal Resistance (phase-phase) | 55 mΩ |
| Motor Inductance (phase-phase) @ 1khz | 13.6µH |
