Item #: A_4225_PNP
Stock 3-4 days
€ 489,00
In combination with our new A-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! We wanted to take the guess work out of Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 90E /20cc-25cc sized airplanes. The A-4225 PNP Combo is the solution. This pairs our high power and high efficiency A-series motors with one of our suitably sized, pre-programmed, Tribunus ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency! This PNP combo is ready to easily bolt on, and give you the power you need, with the efficiency you want.
MOTOR SPECIFICATIONS :
Motor Kv 500 RPM / Volt
Weight (including cross mount + Prop mount accessories) 398g ( 14.04oz)
Motor Body Dimensions 50.7mm x 50.9mm (+12.0mm prop spacer) (1.99" x 2.00" (+ 0.47") )
External Shaft Diameter 8mm
Continuous Current 100A
Continuous Power 2220 Watts
Peak Current* 140A
Peak Power* 3108 Watts
Max Rated Lipo Cell 6s
Stator Arms 12
Magnet Poles 14
ESC SPECIFICATIONS :
Max Continuous Current 120 Amps
Peak Current 160Amps
Operating Voltage Range 11-26.1 Volts
BEC Output voltage***: OFF/5.1/6.1/7.1/8.1
Max Continuous BEC Output 10 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
Size 76.7 x 36.5 x 25.4 mm (3.02 x 1.44 x 1 in)
Weight (Without Connectors) 120g (4.23 oz)
Drive frequency 8kHz - 32kHz
Cable gauge 12 AWG

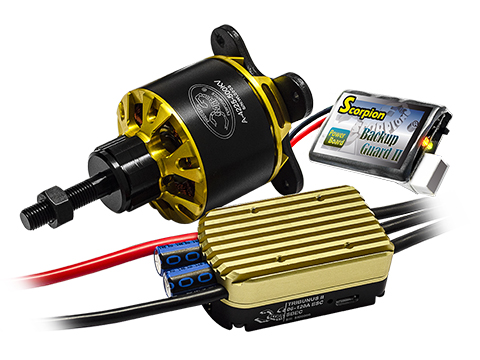

Included in the Box
1 x Scorpion A-4225 BLDC Motor
1 x A-42 Cross Mount (stock)
4 x M4 Cross Mount Mounting Bolts
12 x 4x16x1 Thrust Shims
1 x M8 Nut + prop washer
1 x Tribunus II 06-120A ESC SBEC
2 x BEC Cables
1 x Backup Guard II (power board)
1 x Scorpion Lock Strap (L)
3 x Scorpion Stickers
