Item #: IM_8012_115
In stock
€ 384,99

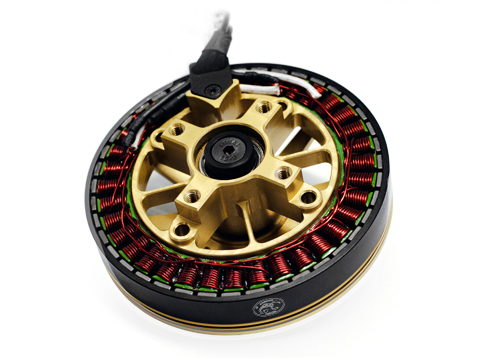

Scorpion Industrial Motor for UAV/multi rotor is a new premium motors produced for top class UAV.

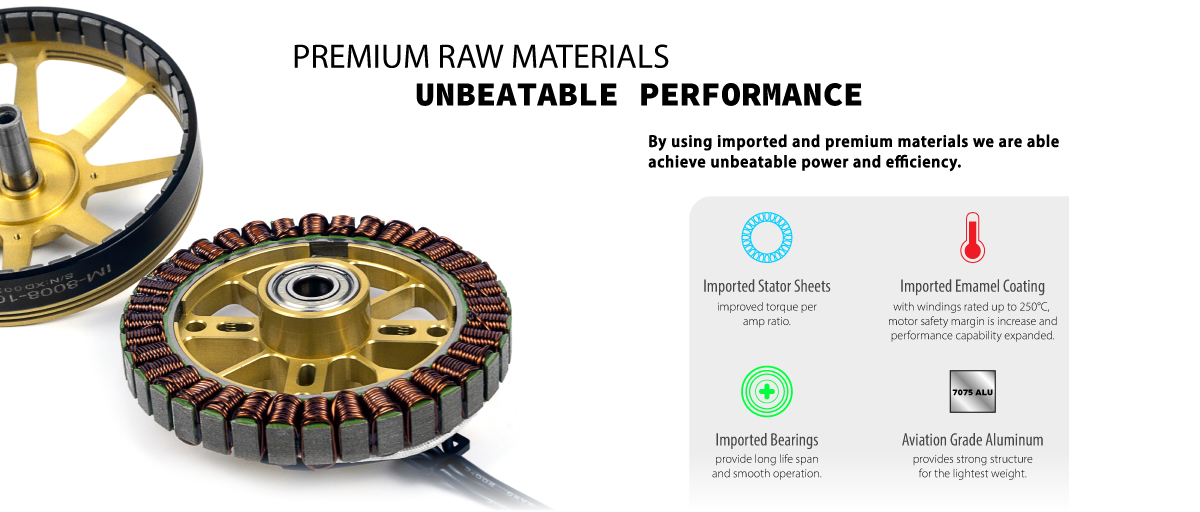

motors made with Premium materials, 7075 Grade Aluminum, offer you best of the range motor.
Specifications
Motor KV 115
Weight (incl. 20cm wire) 377g
Continuous Current 36A
Continuous Power 1600w
Peak Current 70A
Peak Power 3108w
Recommended Prop 27" - 28"
Maximum Thrust 14.15kg (31.13lbs)
Recommended Thrust Per Arm 3.68kg - 7.0kg (8.10lbs -15.40lbs)
Recommended Voltage 12s (44.V - 52.2V)
Bearings Dual, Imported NMB R-1980KK 8x19x6
Shaft Diameter 8mm
Bearings Dual, Imported NMB R-1980KK 8x19x6
Shaft Diameter 8mm
Stator Diameter 80.0mm
Stator Height 12.0mm
Stator Specifications 0.2mm, Imported
Configuration 36N40P
Use Case Applications
Please be aware that this is a custom made product and require short delay time on delivery.
